75 INCH HD WIFI MIRROR POSTER LCD SCREEN
1、Function Overview：
This series of products have cabinet appearance, full body hardware, cold-rolled steel plate spraying, high-definition effect, and can be widely used in building lobbies, hospitals, stations, hotels, subways, shopping malls, government buildings and other occasions. It is mainly used for multimedia information publicity, pop slide picture advertising, text, audio and video media play. It is a high-end digital sign commercial display product.
2、Basic Specifications：

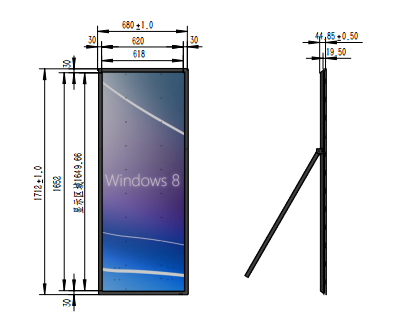

Physical Effect Picture |
|
Display Parameters | |
Panel | 75 inch |
Display area | 1648*618mm |
Panel brand | LED |
Aspect ratio | 8：3 |
Max resolution | 3840*1440 |
Support Colors | 16.7M |
Brightness nits | 500 cd/㎡ |
Contrast ratio | 4000：1 |
Viewing angle | R/L/U/D 89/89/89/89 |
Response time | < 8ms |
Field rate | 60HZ |
Lifetime | 50000H |
Power comsumption | < 180W |
Basic Appearance Parameters | |
Body color | Black |
Body size | 1712*680*45mm |
Net weight | 55KG |
3、Functional Specifications:
Hardware parameters | ||
CPU | Ruixin micro RK3288, quad core | |
Ram | 2G DDR3 | |
Storage | 8G FLASH(scalable) | |
Decoding Resolution | 1080p HD video | |
Interface | Extended SD card holder * 1 RJ45 interface * 1 HDMI high definition output * 1 USB interface * 2 | |
Osd language | Chinese English | |
FILE FORMAT | Video | RMVB，FLV，MPEG1/2/4，AVI，DIVX，XDIV，WMV9，H.264，VC-1， MOV，MKV， MP4，TS，M2T，VOB |
Picture | BMP/PNG/GIF/JPEG | |
Music | MP3，WMA，WAV，EAAC+， MP2 dec，Vorbis(Ogg)，AC3，FLAC，APE，BSAC； | |
Speaker | 2*5W (8Ω) | |
Play mode | 1. Ruixin micro rk3288 chip is adopted, and the system platform is based on Android 5.0 or above. can
Instead of desktop PC entertainment function, the platform has the advantages of standardization and openness;
2. Support HDMI / LVDS boot output free switching;
3. Input function: support resistance, capacitance, infrared, acoustic, nano and other touch screen input; support remote control
Control input, support USB mouse / keyboard input;
4. Support horizontal and vertical screen, 360 degree display mode;
5. Multi storage media support function: can support SD card, USB disk, SATA hard disk peripheral storage;
6. Clock display: built in Clock IC, which can automatically update time information and correct system time;
7. Timing switch: saving energy and prolonging its service life; after setting the switch on time, the whole system starts automatically during the start-up time;
8. Strong network support: support wired / WiFi / 4G (optional) access;
9. Multi language: support Chinese, English and most other national languages, TTF vector font support, display
No distortion;
11. Support a variety of B / S architecture advertising software, based on a strong background server management software support, can
Set the parameters of the advertising machine online, make and distribute the play list online, download the server's advertising film source in real time / regularly, and download to complete the automatic play; | |
Control background software | Yes | |
Other function parameters | |
Touch | No |
WIFI | IEEE802.11B/g/n |
3G | No |
4、Use Environment：
Use Environment | |
Working Temperature： | 0℃～40℃ |
Storage Temperature： | -20℃～60℃ |
Air Humidity： | <85% |
Working Voltage： | ～100V-260Vac 50Hz/60Hz |
